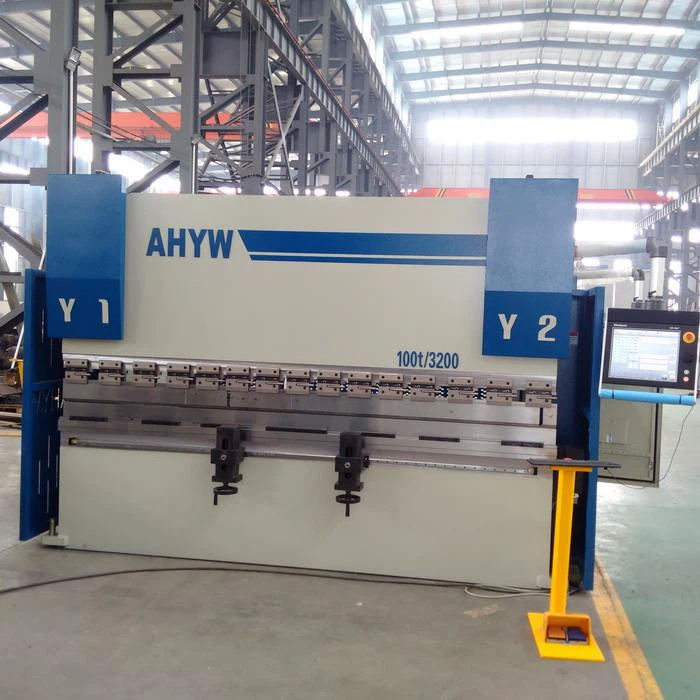

AHYW 3M DA66T Hybrid CNC Xovxwm Nres 4 axis Hoobkas forsale ua hauv Suav teb
Tuam Tshoj Yawei Hybrid CNC xovxwm nres tsim khoom lag luam
Tuam Tshoj AHYW 3M Hybrid CNC hlau dabtsi yog khoov nias tshuab tsim khoom
Tuam Tshoj Yawei 3m servo twj tso kua mis cnc xovxwm nres 4 axis manufactures
Ahyawei AHYW 10ft 4 axis cnc hlau nres xovxwm lwm tus neeg Suav teb
Tuam Tshoj Yawei 10ft Hydrid CNC xovxwm nres cov chaw muag khoom
Tuam Tshoj Yawei DELEM CNC tsis siv neeg nias nres dabtsi yog khoov tshuab tsim khoom
Tuam Tshoj Yawei Hybrid electro hydraulic cnc xovxwm nres 3m tsim khoom lag luam
AHYW Yawei 100T3m cnc xovxwm brakes Tuam Tshoj manufactures
Tuam Tshoj Yawei 3m Synchro cnc xovxwm nres cov chaw muag khoom
AHYW Yawei 3m cnc brakes nias tshuab Hoobkas forsale ua hauv Suav teb
Qhov no Tuam Tshoj Ahyawei AHYW Hybrid CNC Xovxwm Nres-3m100T yog Hydrid hlau dabtsi yog khoov tshuab, uas tau txais ESTUN servo lub cev muaj zog los tsav twj, lub twj tso kua mis tsuas yog pib ua haujlwm nkaus xwb thaum nias tus neeg tsav tsheb nias footpedal nrog hlau khoov txheej txheem, nws yuav cia li sawv ntsug thaum tsis muaj qhov ua haujlwm khoov, uas yuav txuag hluav taws xob thiab siv roj, nws' ib qho elvolutionary synchro cnc nias nres
█Qhov zoo ntawm Tuam Tshoj Yawei AHYW 100Ton3m DA66T Hydrid CNC Xovxwm Nres 4 Axis
• Qhov nrawm tshaj: 18-20 mm/sec khoov nrawm, mus txog qhov siab 220mm/s, rov nrawm 200mm/s.
• Nws yog qhov nrawm ua haujlwm nias nres siv servo motors thiab cov twj siv tau zoo.
Eco -Friendly
• Tus tshiab xovxwm nres yog eco-phooj ywg siv zog tsawg dua piv rau tus qauv nias nres.
• Qhov nruab nrab 40% txuag hluav taws xob thaum siv piv rau tus qauv nias nres.
• Txo cov qib roj: 30%
• Khoov kom zoo
Kev ua haujlwm siab tshaj plaws tau ua tiav raws li tsis muaj kev poob siab los ntawm kev sib piv li qub.
• Nyob ntsiag to hauv nws chav kawm: 63db
• 3x lub sijhawm ua haujlwm ntev dua
Cov kab ke thiab lub twj tso kua mis muaj 3 lub sijhawm ntev dua vim yog cov khoom siv tau zoo thiab ntse siv tshuab.
• Roj tsis kub
Cov roj tau ruaj khov dua li yav tas los vim tias cov roj tsis ua kom sov, raws li cov twj tso kua mis uas tsis ua haujlwm thaum lub tshuab nyob ntawm hom sawv ntsug.
Yuav luag tsis muaj roj khiav thaum nias nres ram nqis
Kev Paremeters ntawm Yawei AHYW Hydrid CNC Xovxwm Brakes 100Ton3m
| Max khoov siab | 100 Tuj | Max hlau dabtsi yog khoov ntev | 3200 hli, 10FT |
| Sab thav duab nrug | 2700 hli | Max nruab hnub nrig | 420 hli |
| X khoov rov qab ntsuas | 600 hli | R axis khoov rov qab ntsuas | 150 hli |
| X txav ceev | 400 hli/s | Mus kom ze ceev | 220 hli/s |
| Lub zog loj servo motor | 6 kwv | Dabtsi yog khoov ceev | 18-20mm/s |
| Qhov hnyav tag nrho | 7.5T | Qhov ntev | 3600*1900*2400 hli |
Cov duab tseem ceeb ntawm Yawei AHYW 100Ton3m DA66T Hydrid CNC Xovxwm Brakes 4 Axis chaw tsim khoom, cov khoom siv nyob hauv Suav teb
Tha
Main servo motor tsav lub twj tso kua mis rau Tuam Tshoj AHYW Yawei Hybrid CNC Xovxwm Brakes tsim khoom
DA66T Kov npo 2D cnc nias nres tswj
2 pcs ntiv tes nres txav ntawm ob kab lus qhia rau Synchro Hybrid CNC xovxwm nres Tuam Tshoj Yawei tsim lub Hoobkas
German Heidenhain Linear scale rau Tuam Tshoj Ahyawei CNC xovxwm nres nres tsim khoom
Jpan Yaskawa servo motor thiab tsav rau 2 axis cnc tswj xovxwm nres rov qab ntsuas
Pob ntsia hlau& qhia tawm cnc automatical xovxwm nres rov qab ntsuas lub Hoobkas forsale ua hauv Suav teb
AHYW Yawei Tuam Tshoj muaj ntau txoj hauv kev rau Hybrid Pressbrakes 4 axis rau 4m hlau khoov nrog Hoerbiger Eprax Hybrid system
AHYW Yawei PBM MainElectroHydraulicstructureofHybridPressBrakeMachines:
AHYW HoerbigerePrAXhybridsystemmounteddirectlyontopofY1& Y2cylinders;
li qub, twj tso kua mis, servodriveandoiltankarecompactlyintegratedintheePrAX.
Neeg’Cov txiaj ntsig Ntawm Hybrid ePrAX 3M& 4M PBM CNC Hybrid Xovxwm nres:
1, Txo lub sijhawm voj voog ntawm qhov nrawm
Nias nres ram txoj kev -mute-khoov-decompression-rov qab, Hybrid xovxwm nres tshuab tuaj yeem txuag tau 30% lub sijhawm voj voog
2, Eco hauv
Thaum koj tab tom txiav txim siab yuav khoom hybridnias nres, thawj qhov uas yuav tau saib yog kev txuag hluav taws xob.
Siv Hybrid servo brakes nias 3Mtr/125T ua piv txwv, cov neeg siv khoom tuaj yeem tau txais kev txuag hluav taws xob 62% thaum nyob rau hauv hom tos, 44% txuag thaum lub sijhawm nias thiab 60% txuag ntau dua ib teev. 3, Ntsiag to
Ib yam uas peb nyiam Hybrid xovxwm nres tshuab yog tias thaum nws’s nyob rau hauv hom tos thiab tsis txav thaum tuav cov khoom khoov, nws’s khiav ntsiag to, tsis muaj suab nrov
4, Yooj yim thov& kho
Y1& Y2 muaj lub tank roj ywj siab, txhua yam khoom siv hydraulic tau koom ua ke hauv Hybrid system, tsis xav tau kev tshaj lij hydraulic
5, Tsawg siv roj
Roj peev xwm ntawm 34.5L*2 units, tsis tas yuav hloov roj hauv 7000 teev ua haujlwm
6, Tsawg siv hluav taws xob
Servo nce mus nce los ceev lub cev muaj zog-twj yeej’t khiav yog tus neeg teb xov tooj tsis nias pedal
7, Qhov tseeb
Servo Hybrid xovxwm nres yog qhov tseeb ntau dua li tus qauv hydraulic pressbrake tshuab. Txhua sab ntawm qhov sib txuas xovxwm nres yog ua haujlwm ntawm nws tus kheej li hydraulic, nrog txhua lub tog raj kheej muaj nwstus kheej servo motor thiabvalve tswj nws. Tshaj li qhov raug ntawm cov nplai sib xyaw xovxwm nres muaj txhua qhov servo lub cev ntsuas thiab tswj cov kua dej uas peb’rov thawb los ntawm qhov qub. Yog li nws’s tswj tau ntau dua, ntawm kev hais kom ua, zoo li kev tsav tsheb ncaj qha. Nws’s ceev heev thiab raug heev.
8, yog’t ua kom sov
9, Kev khoov siab dua
Kev ua haujlwm siab tshaj plaws tau ua tiav raws li tsis muaj kev poob siab yam tsis muaj qhov sib piv li qub.
Yuav Ahyawei AHYW 10ft& 3m Hybrid CNC Sheet Metal Press Bending Brakes thiab sheet hlau guillotine txiav txiab los ntawm Tuam Tshoj Chaw Tsim Tshuaj, Chaw Muag Khoom, Anhui Yawei Tshuab yog koj qhov kev xaiv zoo tshaj plaws rau Tuam Tshoj Sheet hlau Machinery Hoobkas.
