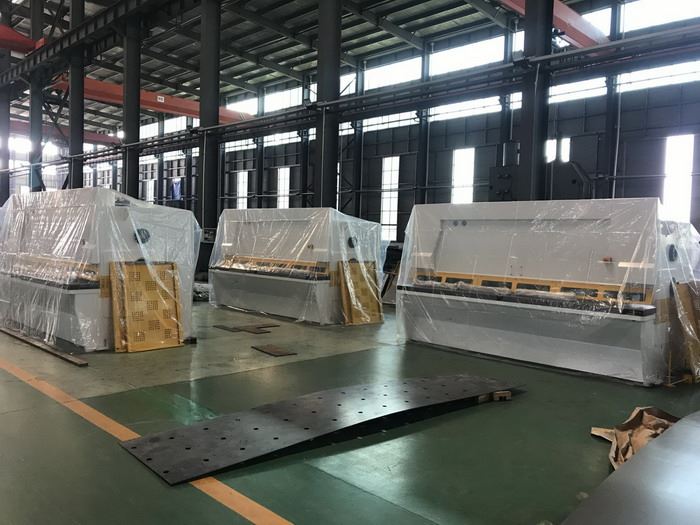

AHYW Yawei 4m Hlau Shearing Tshuab ua nyob rau hauv Tuam Tshoj Hoobkas
Tuam Tshoj Yawei ua 4m hlau txiav tus qauv los nrog txiav qhov loj me thiab qhov kev ua haujlwm tswj hwm, lub cev muaj zog rov qab ntsuas lub zog khiav ntawm lub pob ntsia hlau thiab cov kab ntawv qhia nrog cov ntawv siab dua cov khoom txiav precision thiab kev ua haujlwm, ESTUN ua E21S txiav maub los txais zaus inverter tshuab ntawm 2 axis pib tswj, yooj yim txiav nplooj ntawv tsuas yog yuav tsum tau txiav tus neeg teb xov tooj ntaus ntawv cov ntaub ntawv cov ntaub ntawv rau kev txiav cov ntawv.
Hlau Shearing txheej txheem yog txheej txheem hlau fabricating siv los txiav (shear) cov kab ncaj nraim ntawm cov ntawv hlau ntawm cov npoo ntawm ob qhov kev tawm tsam txiav. Cov hniav hauv qab tau tsau rau ntawm lub rooj ntawm lub tshuab txiav, cov hniav saum toj kawg nkaus mounted ntawm lub nqaj qaum, lub nqaj qaum khiav nce thiab nqis txiav& rov qab ua haujlwm nrog lub zog hydraulic siab, Thawj kauj ruam hauv cov txheej txheem tag nrho cov hlau txiav yog clamp cov hlau. cov khoom siv nrog cov tuav tsis muaj. Thaum cov ntawv txiav cov ntaub ntawv yog clamped, ib tug txav hniav los ntawm ib tug ruaj hniav nrog qhov sib txawv ntawm lawv txiav txim los ntawm ib tug yuav tsum tau offset.
The moving blade may be set at an fixed angle tocutting the material progressively from one side to another, Yawei ahyw designed swing beam shear cutting material with fixed angle which better fora lot same metal sheet thickness material cutting, another shears designed with rake variable cutting angle, it can cutting different sheet thickness, from Aluminium, Mild steel, Zinc, High tensile strength Hardox sheet cutting, rake angle&cutting blades gap can be manual adjusted or auto setting by DELEM DAC360T&ESA S625 CNC Guillotine controller, bigger blades gap and cutting angle can decrease cutting pressure, smaller blades gap and cutting angle will increase cutting pressure; it's better Min setting blades gap when cutting thin Galvanized sheet or thin stainless material, small gap will get better and sharp cutting edges.
Yog tias qhov kev txiav me me dhau lawm, cov cuab yeej hnav yuav nce ntxiv, ua rau cov cuab yeej siv ntau dua thiab txiav quab yuam. Yog hais tias lub cuttingblades gapis loj heev, cov khoom yog kos ntawm ob lub hniav. Qhov tshwm sim yuav yog txiav ntug nrog nce taper thiab loj dua yas deformation. Cuttingblades qhov sib txawv yog qhov tseem ceeb rau kev txiav cov npoo kawg.
Kev xaiv pneumatic daim ntawv txhawb nqa rau 6mm * 4m sheet hlau txiav tshuab, tshwj xeeb tshaj yog tsim txiav nyias nyias 0.5mm txog 4mm Galvanized ntawv, uas txhawb nqa yuav ua raws li kev txiav txim siab, tuaj yeem ua kom zoo dua txiav.
Yeem CE rear teeb saib xyuas txiav hlau shearing tshuab ua nyob rau hauv Suav teb AHYW Yawei Hoobkas, IR rear kev ruaj ntseg tiv thaiv rau Tuam Tshoj Yawei 6 hli 4m Sheet HlauCuttingshear Machinery
Yuav Ua Li Cas Hloov Hlau Shearing Blades Tom Qab Txiav Ntev?
1. Txhawm rau hloov cov hniav ntawm lub qhov rooj hydraulic shear, cov txiv ntoo kho cov hniav yuav tsum raug tshem tawm. Tom qab ntawd kuv sim khiav lub cuab yeej qis dua, tab sis lub caij nplooj ntoos hlav telescopic ua raws. Tom qab hloov cov riam tshiab, loosen cov ntsia hlau kho ntawm rab riam qis, ua kom qhov sib txawv ntawm cov riam sab sauv thiab sab qis los ntawm lub hauv paus qub, pib lub riam sab sauv mus rau qhov qis tshaj, kaw lub tog raj kheej rov qab valve kom nres lub riam sab sauv ntawm qhov qis tshaj plaws, ntsuas qhov sib txawv ntawm cov riam sab sauv thiab sab qis nrog lub ntsuas qhov ntsuas, kho cov ntsia hlau ntawm cov riam qis kom kho qhov sib txawv mus rau 3 mus rau 4 screws, thiab tom qab ntawd qhib lub qhov rov qab los nqa lub riam sab sauv. me ntsis, ceev ceev kaw lub rov qab valve kom nres lub sab saum toj riam thiab ces kho qhov clearance. Nyob rau hauv txoj kev no, kho qhov kev tshem tawm ntawm cov riam sab sauv thiab sab qis ob peb zaug ntawm sab xis mus rau sab laug, thiab thaum kawg nruj lub hau.
2. Rau lub rooj vag hydraulic shear, cov hniav yuav tsum tau muab txiav tom qab siv rau lub sijhawm, txhawm rau txhim kho kev ua haujlwm zoo. Muaj qee qhov kev xav tau rau txoj kev sib tsoo ntawm cov hniav, uas tau txheeb xyuas los ntawm cov ntsiab lus hauv qab no:
(1) pib sib tsoo los ntawm lub dav hlau dav hlau los xyuas kom meej tias nws ci tsis muaj qhov ncauj qhov ncauj, thiab tom qab ntawd zom rau sab. Ua tib zoo saib rau parallelism.
(2)if the grinding plane of the blade is inclined, adjust the grinding pressure and apply force appropriately on the thicker side.
(3) Pay attention to regularly check the accuracy of the grinding plate and calibrate the plate.
(4) if the workpiece temperature exceeds 40-50 ℃ during grinding, it shall be suspended for a period of time until it is cooled, because heating will affect the accuracy of the blade After grinding, the blade of hydraulic shearing machine can maintain its basic performance, shear the workpiece more vigorously, and ensure the smooth shearing process
(5) : the blades of the hydraulic shearing machine after final grinding shall be coated with a layer of antirust fluid to avoid rust.
Xav paub ntau ntxiv txog kev txhawb nqa lossis kev ua xyem xyav, xa email rau peb kom ceev cov kev daws teeb meem thiab kev txhawb nqa hlau shearing.
